Product Details
＋

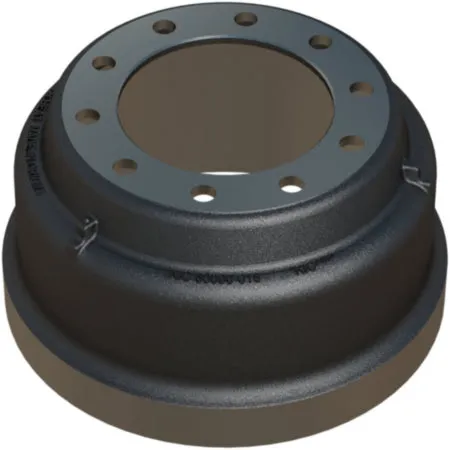

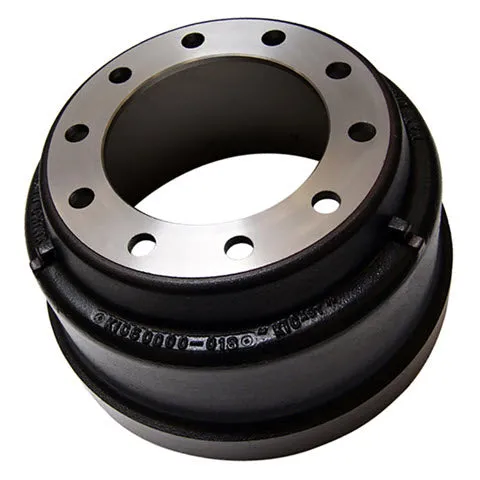

Heavy Duty Brake Drum (10 hole, for 16.5" x 7" brakes)
Part Number: HDD 60000-018
Alternate : HDD 60000-018USA
- KICast Cast Iron Brake Drums are OEM First Fit Quality
- Optimized Metallurgy for maximum heat dissipation, durability, and stopping ability.
- Special information: Balanced
Specifications:
| Bolt Circle Diameter | : 11.25 in |
| Bolt Hole Quantity | : 10 |
| Bolt Hole Size | : 1 in |
| Brake Size | : 16.50 x 7.00 in |
| Brake Surface Diameter | : 16.5 in |
| Brake Surface Width | : 7.56 in |
| Drum Mount | : Outboard |
| Drum Type | : U |
| Dust Shield Recess Diameter | : 17.5 in |
| Inside Finished Diameter | : 13.05 in |
| Maximum Wear Diameter | : 16.62 in |
| Mounting Flange Diameter | : 13.28 in |
| Mounting Flange Thickness | : 0.48 in |
| Outside Sidewall Diameter | : 17.45 in |
| Overall Depth | : 10.56 in |
| Overall Diameter | : 18.89 in |
| Pilot Diameter | : 8.78 in |
| Sidewall Offset | : 3.23 in |
| Squealer Band Width | : 2.25 in |
| Weight | : 102 lb |
| Wheel Type | : Disc |
Interchanges:
Automann: ATM 151.6726BA, 1516726BA
Freightliner: A1657 VB, A1657VB, ABPN42A, N42A1657VB
Gunite - 3922X
Mack - 3398-3922X
Webb - 56864B, 56864F
